HG106C series

HG series

GaAs (Gallium Arsenide) is used as the material for the magnetic sensing.
Thermal coefficient for the constant current drive is excellent with -0.06%/��C maximum.

Standard type

- Symmetrical type (input resistance and the output resistance are equal).

Package	Name	Package Size (mm)			Input/Output Resistance (Ohm)	Offset Voltage (mV/6V)	Hall Output Voltage (mV/6V.50mT)
		L	W	H
SMT	HG-106C	2.5	1.5	0.6	650 to 850	-11 to 11	55 to 75
	HG-106C-2U	2.5	1.5	0.6
SON	HG-0111	1.6	0.8	0.5
SIP	HG-302C	2.35	2.7	0.95

Package	Name	Package Size (mm)			Input/Output Resistance (Ohm)	Offset Voltage (mV/5mA)	Hall Output Voltage (mV/5mA.50mT)
		L	W	H
SMT	HG-116C	2.5	1.5	0.6	650 to 850	-7 to 7	34 to 52

Note: SMT - Package size includes the leads.

- Asymmetrical type (The input resistance is lower than the output resistance).

Package	Name	Package Size (mm)			Input Resistance (Ohm)	Output Resistance (Ohms)	Offset Voltage (mV/6V)	Hall Output Voltage (mV/6V.50mT)
		L	W	H
SMT	HG-106A	2.5	1.5	0.6	450 to 750	1000 to 2000	-16 to 16	75 to 95
	HG-106R The input/output pin is arranged conversely in comparison with HG-106A	2.5	1.5	0.6
SON	HG-0112	1.6	0.8	0.5
SIP	HG-302A	2.35	2.7	0.95

Package	Name	Package Size (mm)			Input Resistance (Ohm)	Output Resistance (Ohms)	Offset Voltage (mV/5mA)	Hall Output Voltage (mV/5mA.50mT)
		L	W	H
SMT	HG-116A	2.5	1.5	0.6	450 to 750	1000 to 2000	-8 to 8	30 to 56

Note: SMT - Package size includes the leads.

Medium-sensitivity type

The Hall output voltage at the constant current drive is high compared with the standard type because the input resistance is high.

Package	Name	Package Size (mm)			Input Resistance (Ohm)	Output Resistance (Ohm)	Offset Voltage (mV/6V)	Hall Output Voltage (mV/6V.50mT)
		L	W	H
SMT	HG-166A	2.5	1.5	0.6	1000 to 1500	1800 to 3000	-8 to 8	78 to 102
	HG-166A-2U
SON	HG-0113	1.6	0.8	0.5
SIP	HG-362A	2.35	2.7	0.95

Note: SMT - Package size includes the leads.

High-sensitivity type

The Hall output voltage at the constant current drive is high compared with the Medium type because the input resistance is high.

Package	Name	Package Size (mm)			Input Resistance (Ohm)	Output Resistance (Ohm)	Offset Voltage (mV/6V)	Hall Output Voltage (mV/6V.50mT)
		L	W	H
SMT	HG-176A	2.5	1.5	0.6	1600 to 2400	3200 to 4800	-8 to 8	78 to 102
	HG-0814	1.6	0.8	0.38
	HG-372A	2.35	2.7	0.95

Note: SMT - Package size includes the leads.

Ultra high-sensitivity type

Package	Name	Package Size (mm)			Input Resistance (Ohm)	Output Resistance (Ohm)	Offset Voltage (mV/6V)	Hall Output Voltage (mV/6V.50mT)
		L	W	H
SMT	HG-186A	2.5	1.5	0.6	2200 to 3200	4400 to 6400	-8 to 8	80 to 110
	HG-0115	1.6	0.8	0.5

Note: SMT - Package size includes the leads.

See Definition of Terms here.
See Reliability Test Terms here.

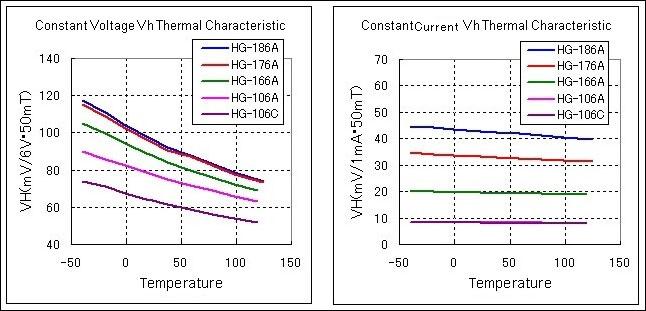

[ Constant Voltage Vh Thermal Characteristic of HG Series Hall Element ]	[ Constant Current Vh Thermal Characteristic of HG series Hall Element ]
